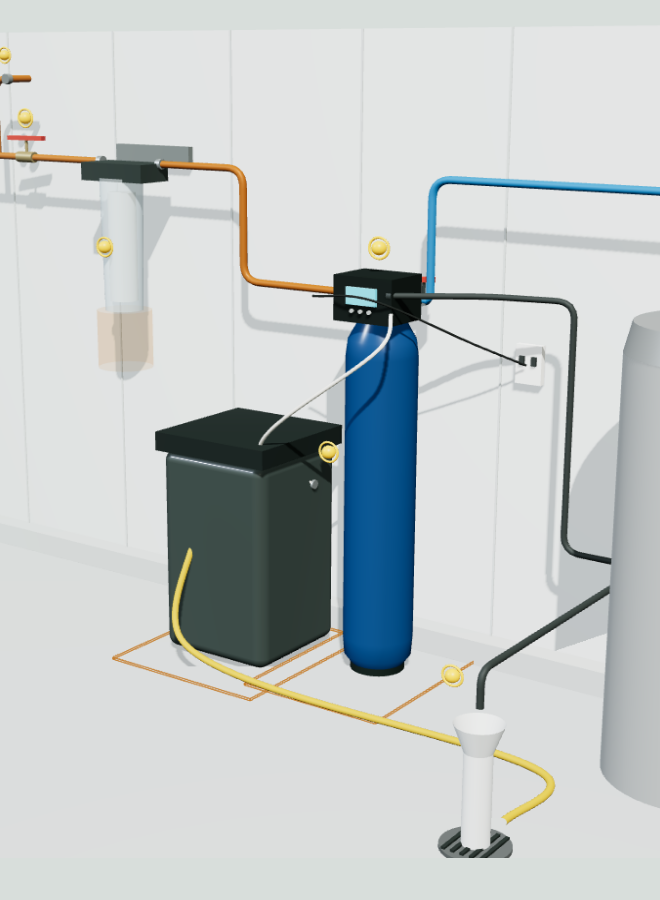

Garage / basement
Whole-house softener routing
Lay out the main shutoff, sediment prefilter, bypass, resin vessel, salt tank, drain air gap, overflow, and soft-water return.
- Main
- 3/4-1 1/4 in
- Market
- United States
- Output
- Route + BOM
Installation tools
Choose a DIY workbench
Each workspace owns its measurements, interfaces, collision rules, and saved installation project.
Active

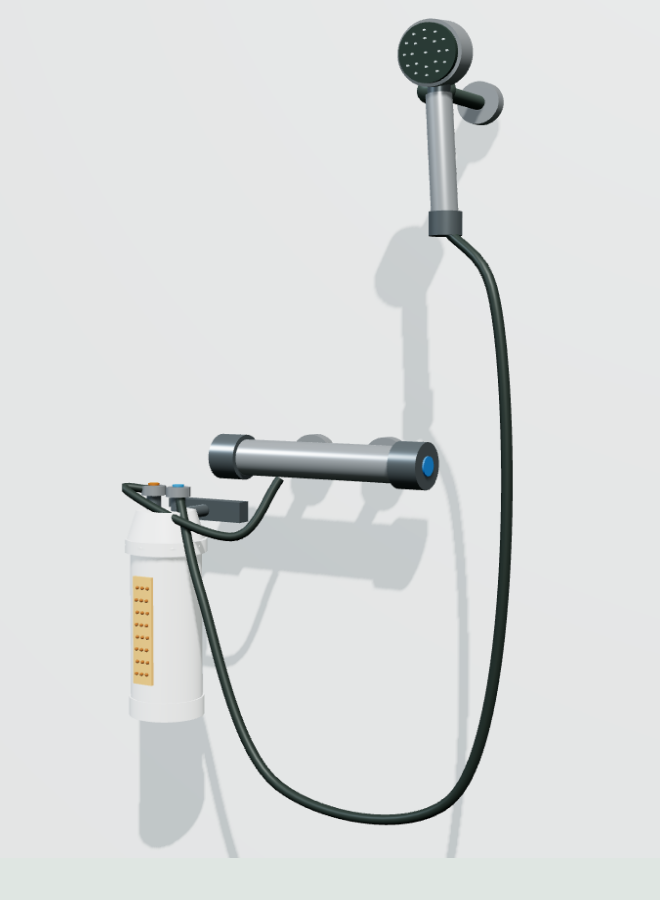

Bathroom system
Shower treatment system
Compare a resin cartridge, filtered shower column, handheld filter, and inline filter against measured wall connections.
- US
- 1/2 NPT
- EU
- G1/2
- Output
- Fit status

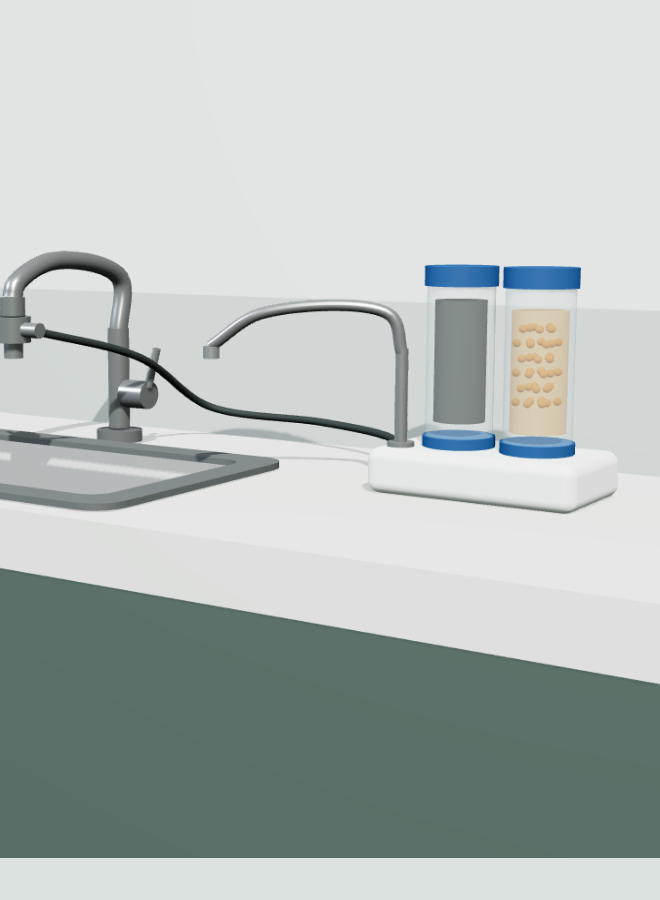

Rental-friendly kitchen
Faucet-connected softener
Compare a tool-free faucet filter with a diverter-fed countertop resin softener, then check thread, cold-water, hose, space, and cartridge service limits.
- Threads
- M22 / M24
- Treatment
- Filter / resin
- Output
- Fit + service

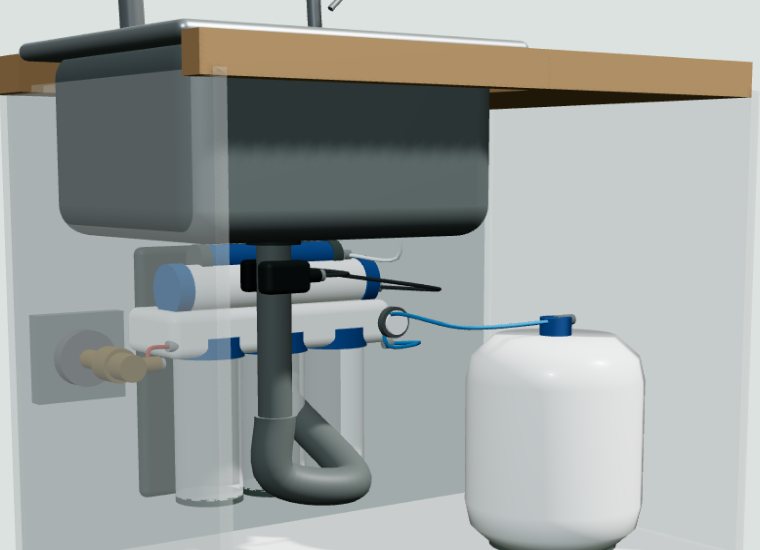

Drinking water system
Under-sink reverse osmosis
Place the prefilters, membrane housing, storage tank, dedicated faucet, cold-water feed tee, purified-water tubes, and wastewater drain saddle.
- Feed
- 3/8 in tee
- Tubing
- 1/4 in OD
- Output
- Fit + route

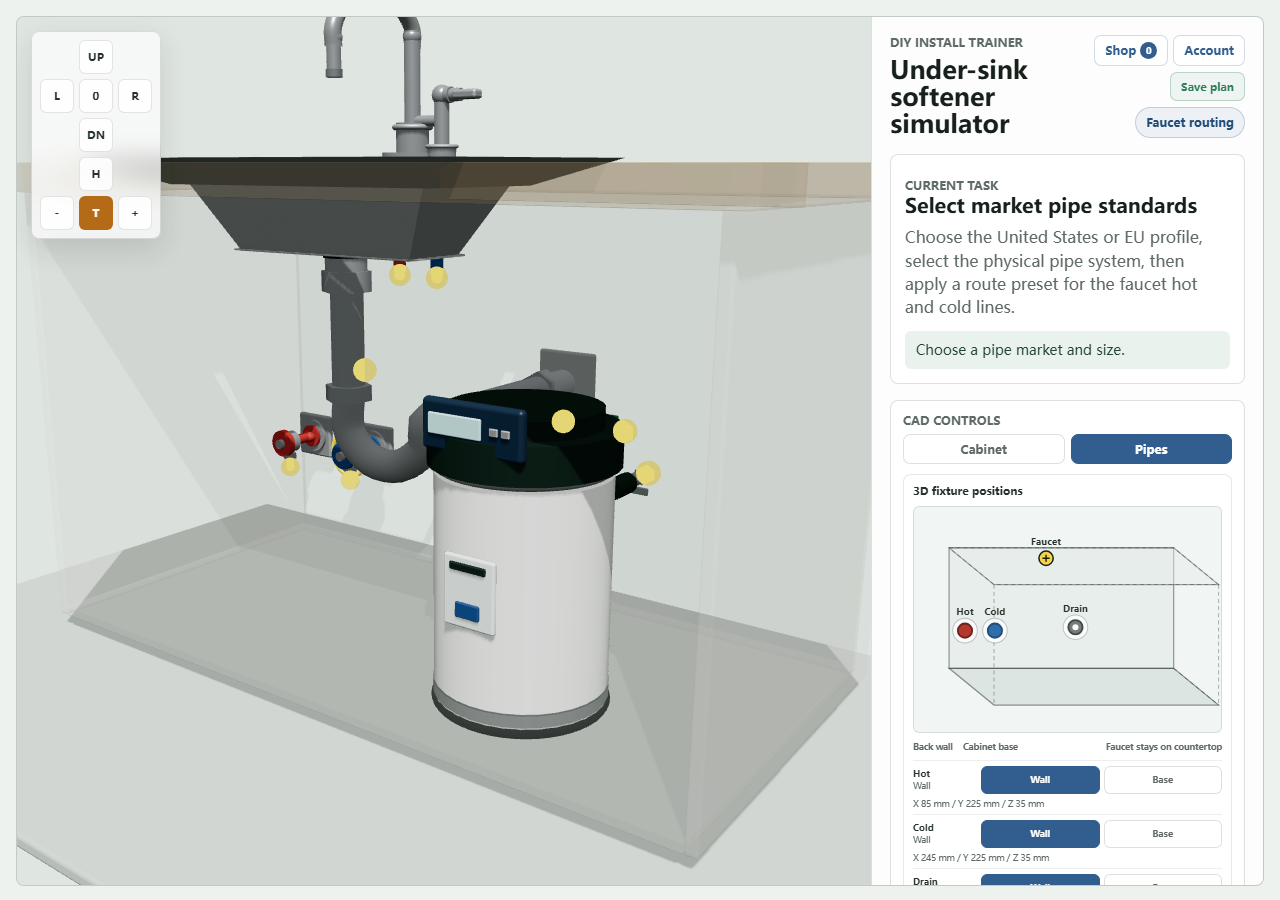

Cabinet system
Under-sink softener
Measure the cabinet, place compact treatment equipment, move supply and drain ports, route hoses, and check collisions.
- Units
- mm
- Markets
- US / EU
- Output
- Draft BOM
